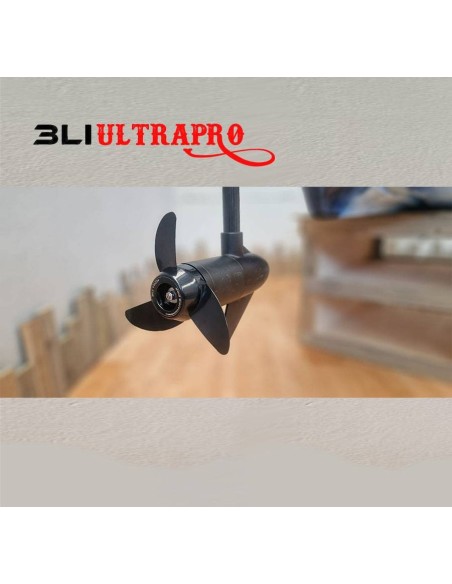

UltraPro 1CV 16.8V 1,100 Wh Long Range electric kayak motor with TR1680B battery
The 3Lithium Technology UltraPro 1CV Long Range motor is the longest-range version of the UltraPro range: the same 1CV motor at 16.8V with the new, higher-capacity 1,100 Wh TR1680B battery. It is aimed at the angler who wants more kilometres per charge without changing motor, with the features of the original UltraPro system and a longer range on every trip.

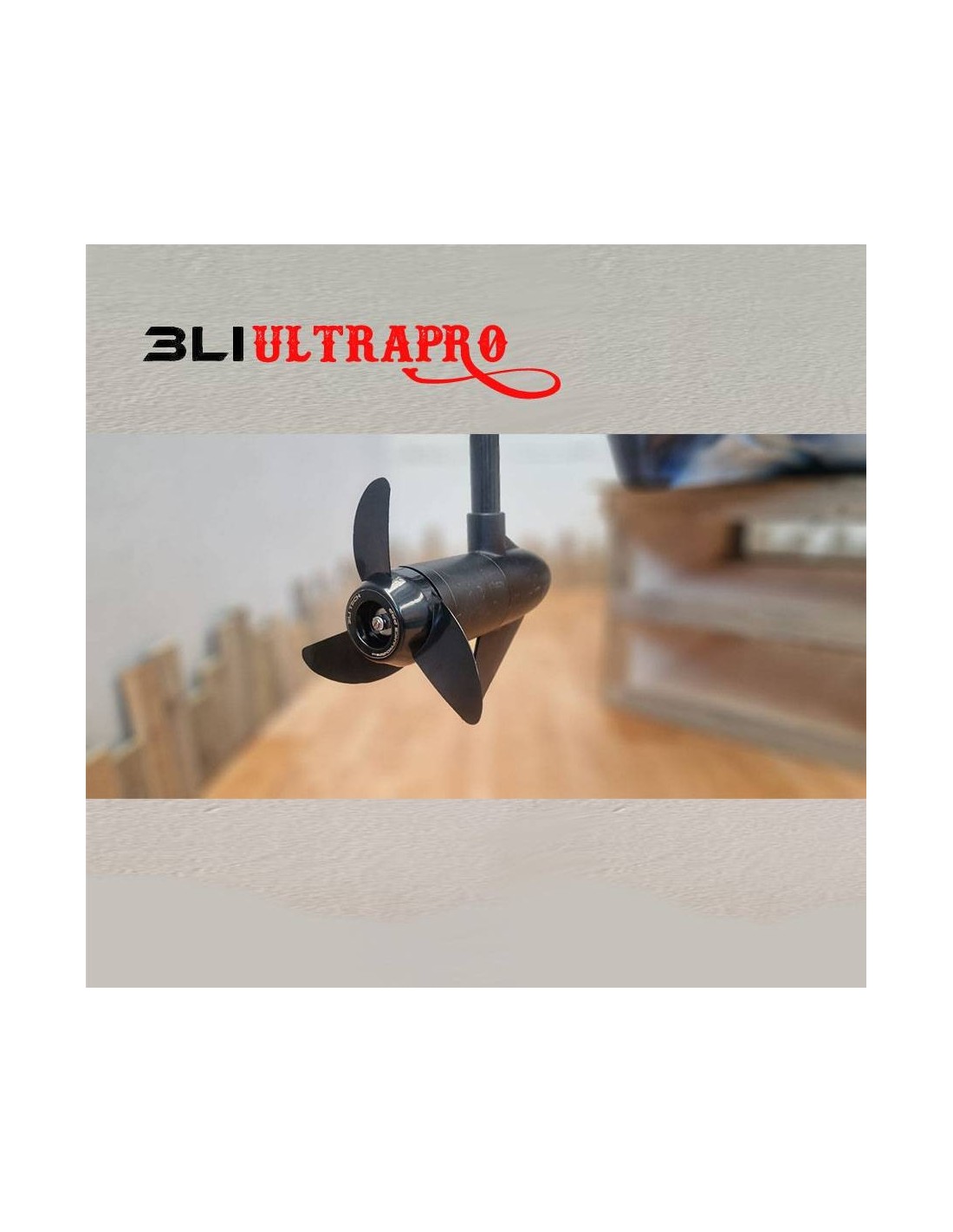

Motor technical specifications
- Power: 1CV
- Maximum voltage: 16.8V
- Nominal voltage: 14.8V
- Cut-off voltage: 12V
- Operation: Smooth and quiet
- Speeds: 0 to 100% forward / 0 to 50% reverse
- Shaft: Composite
- Mounts: resistant to UV and flexing
- Energy-saving system: Maximizer
- Suitable for: Kayaks up to 430 cm and 60 kg
- Safety system: HAA (man overboard), IPX58
- Connection kit: Included as standard
- Charger: Included
- Warranty: 3 years
TR1680B battery: new higher-capacity version
- Capacity: 1,100 Wh (higher than the TR1650)
- Amp-hours: 80 Ah
- Nominal voltage: 14.8V
- Maximum voltage: 16.8V
- Cut-off voltage: 12V
- Maximum discharge current: 60A
- Maximum charge: 14A
- Water resistance: IPX58
- External case dimensions: 414 × 345 × 174 mm
- Battery weight: 6.2 kg
- Motor weight: 3.6 kg
- Mount weight: 1.4 kg
- Total system weight: 11.2 kg
Range and performance table
| Mode |
Speed (km/h) |
Distance (km) |
Run time (h) |
| Low speed |
4.2 |
90.3 |
+19h |
| Medium speed |
6.0 |
65.6 |
~08:39 |
| Maximum speed |
9.3 |
23.4 |
~01:52 |
Values obtained in optimal conditions. The TR1680B version gives more distance at low and medium speed than the TR1650 thanks to its higher energy capacity.
Long Range or standard version: which to choose?
| Feature |
UltraPro 1CV TR1650 |
UltraPro 1CV TR1680B (Long Range) |
| Battery capacity |
750 Wh |
1,100 Wh |
| Distance at low speed |
80.3 km |
90.3 km |
| Distance at medium speed |
52.6 km |
65.6 km |
| Total system weight |
10.2 kg |
11.2 kg |
| Motor |
Identical: same 1CV 16.8V motor |
The Long Range version suits long days, large reservoirs or outings where you want to go further without worrying about the battery. The extra kilogram of the system buys you more range.
Wireless remote
- STOP button: Stops the motor immediately, whatever the speed and direction.
- Plus button (power up): Increases forward power progressively, from 0 to 100%.
- Minus button (power down): Decreases power towards reverse progressively, from 0 to 50% for safety.
Note: the remotes are not submersible.

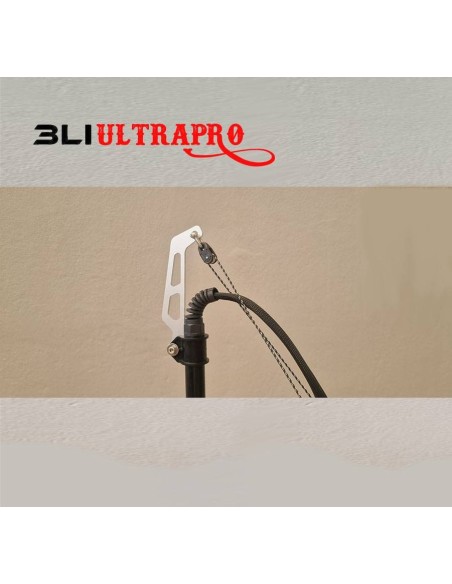

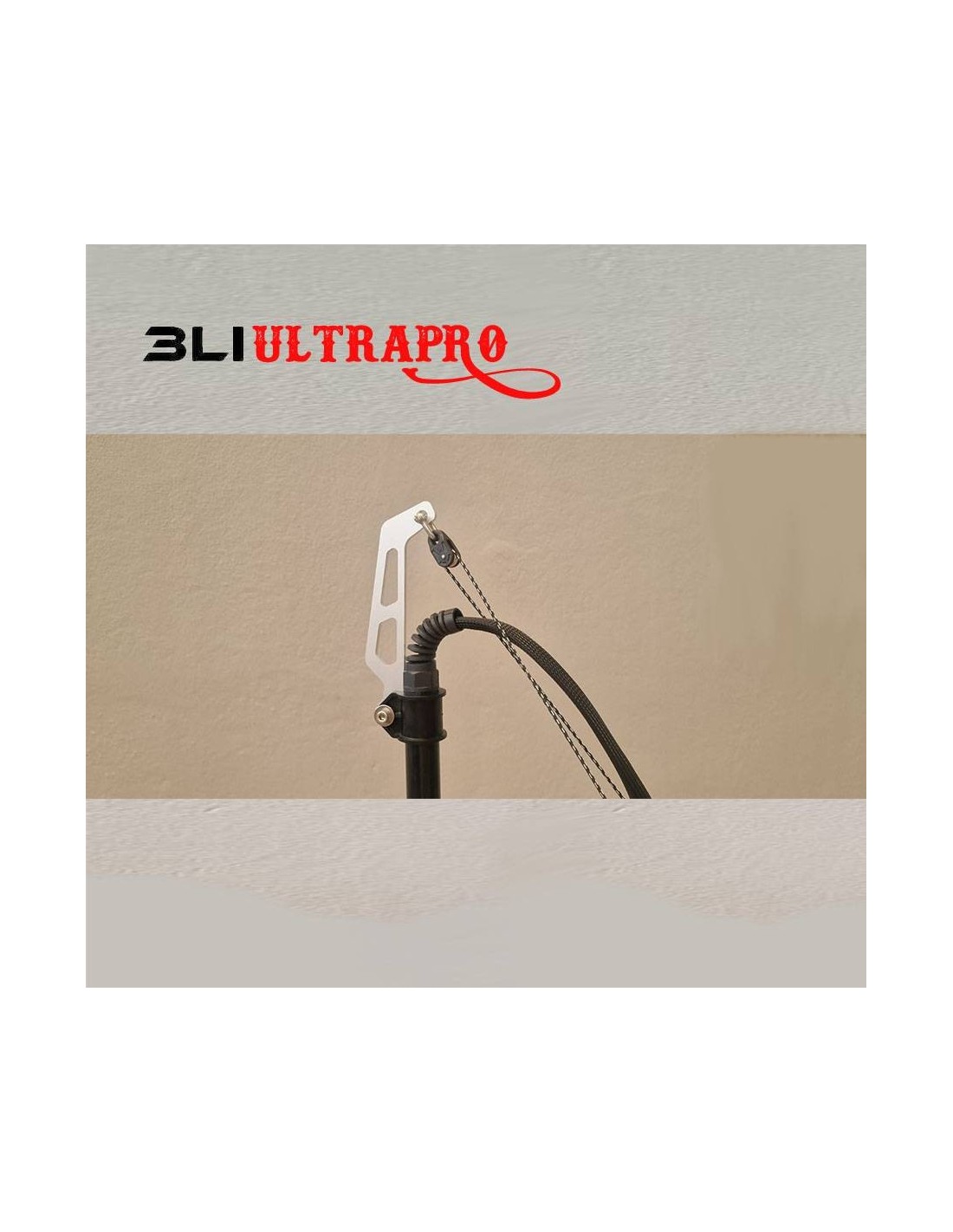

Universal stern mount
Compatible with fishing kayaks such as the Alborán FX3, Wildcat FX, Supernova FX, Outback, Compass and models with a similar hull shape. If your kayak has an unusual hull shape and needs a specific mount, email us at info@peskayak.com.

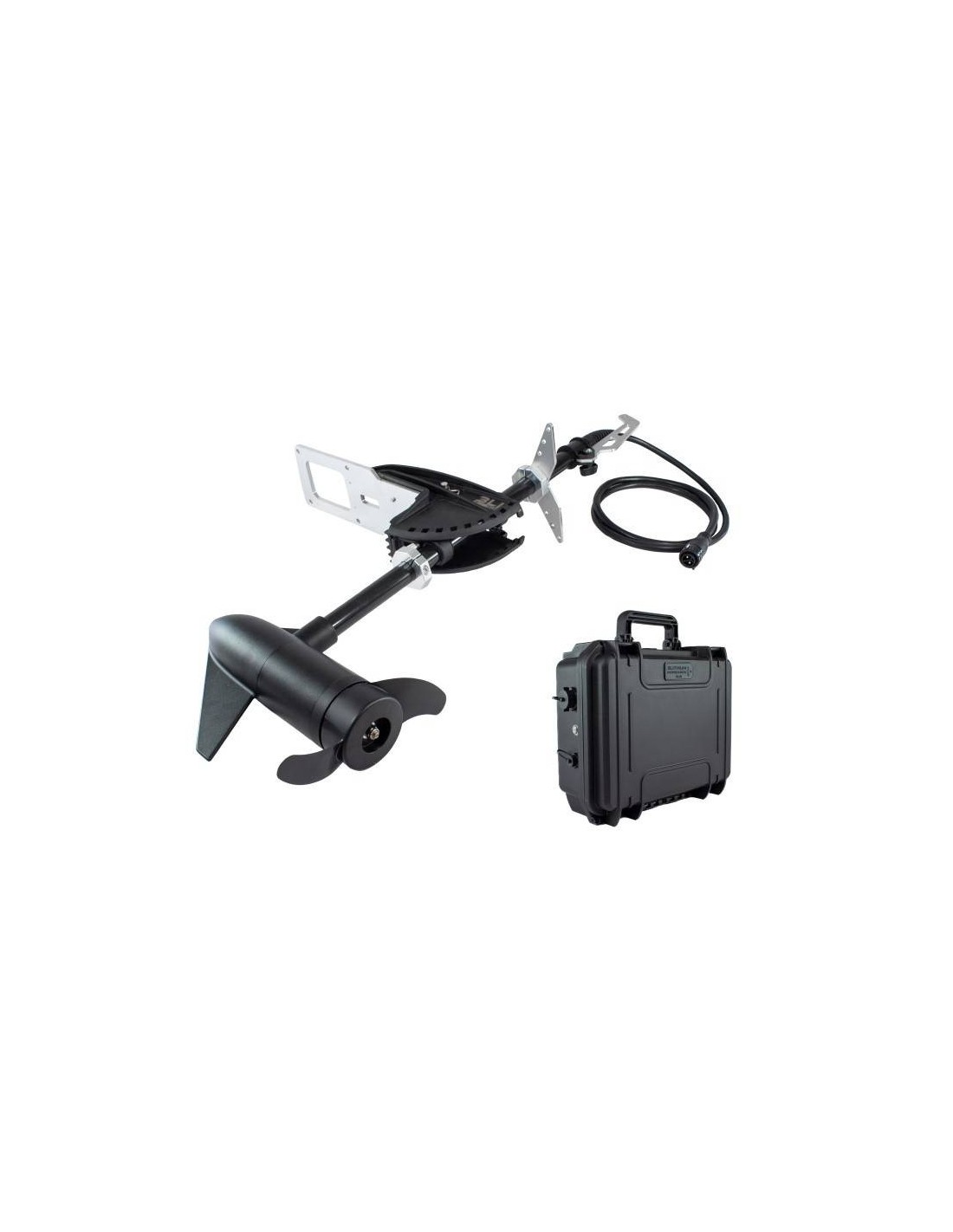

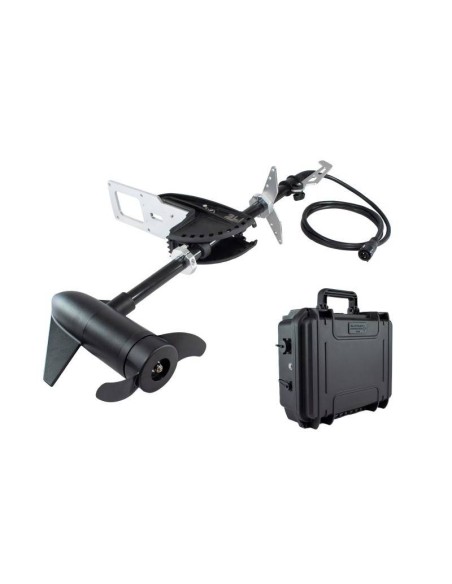

What is in the pack
- UltraPro 1CV 16.8V motor

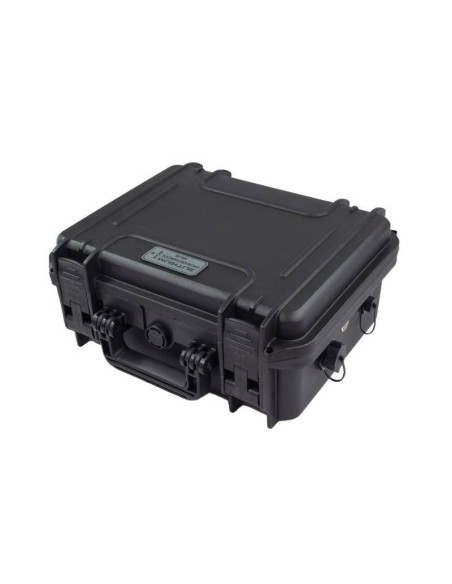

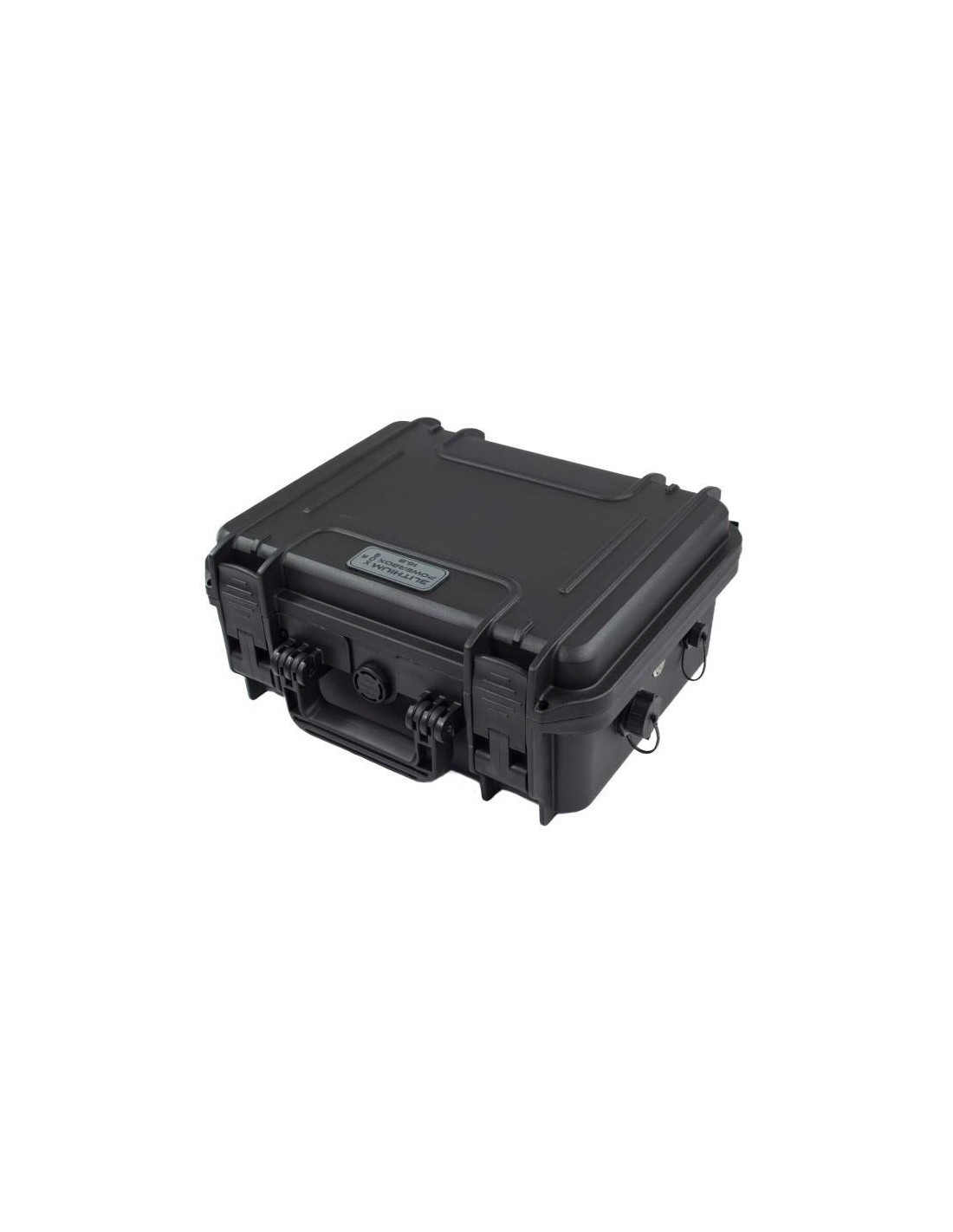

- TR1680B battery in IPX58 case
- Wireless control remote
- Motor Mount universal stern mount
- HAA (man overboard) safety system
- Safety key

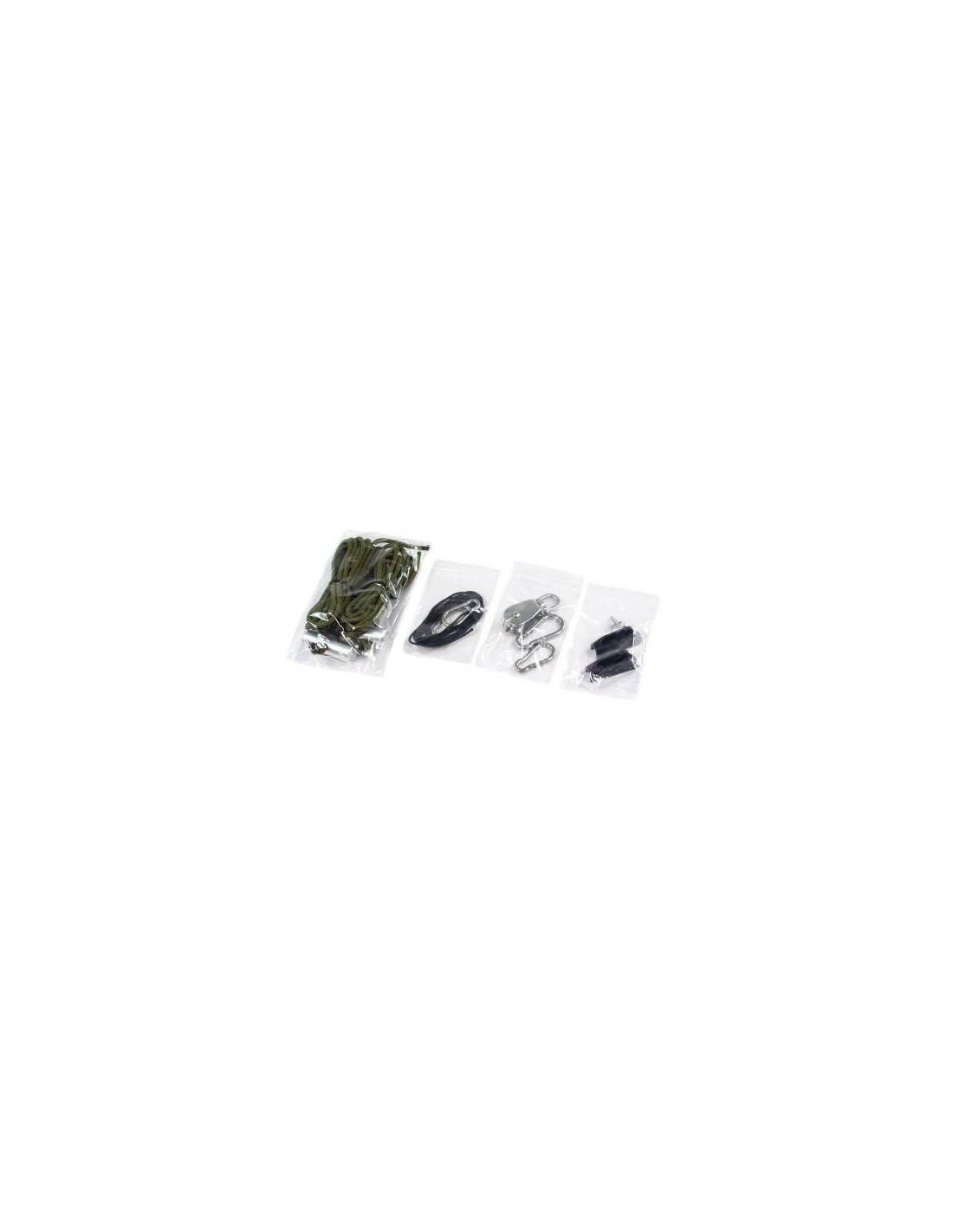

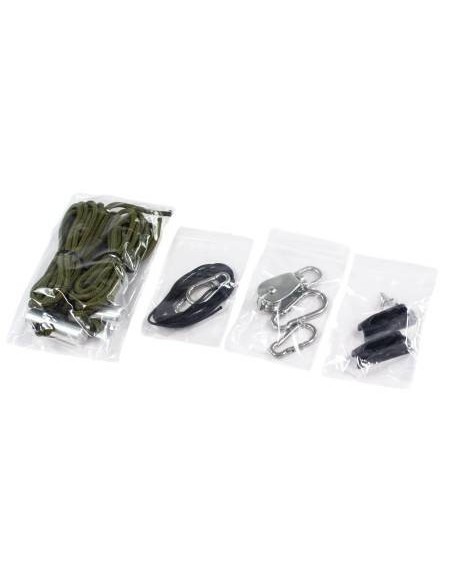

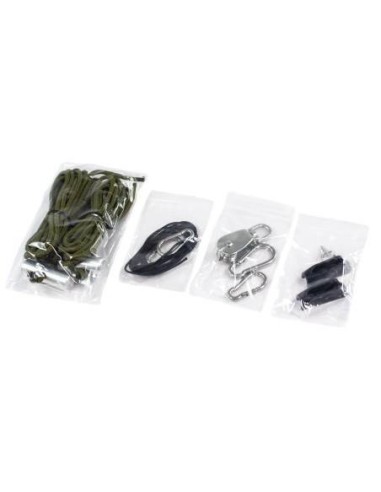

- Connection kit as standard
- Charger included
Frequently asked questions
- What is the difference between the UltraPro 1CV TR1650 and the TR1680B?
- The motor is the same in both models. The difference is the battery: the TR1680B has a higher capacity (1,100 Wh against 750 Wh), which means more kilometres per charge, especially at medium and low speeds.
- Can I use the TR1680B battery with the UltraPro 1CV TR1650 I already have?
- Batteries from the 16.8V HV range are interchangeable between compatible UltraPro motors. To confirm compatibility with your model, email us at info@peskayak.com.
- Does the extra battery weight affect the kayak?
- The TR1680B battery weighs 6.2 kg against 5.2 kg for the TR1650, which is 1 kg more. The total system weight goes from 10.2 kg to 11.2 kg.
- What type of fishing suits the Long Range version?
- Fishing on large reservoirs where you cover several kilometres between spots, long days on the water, and anyone who wants to go out and come back without watching the battery level.
