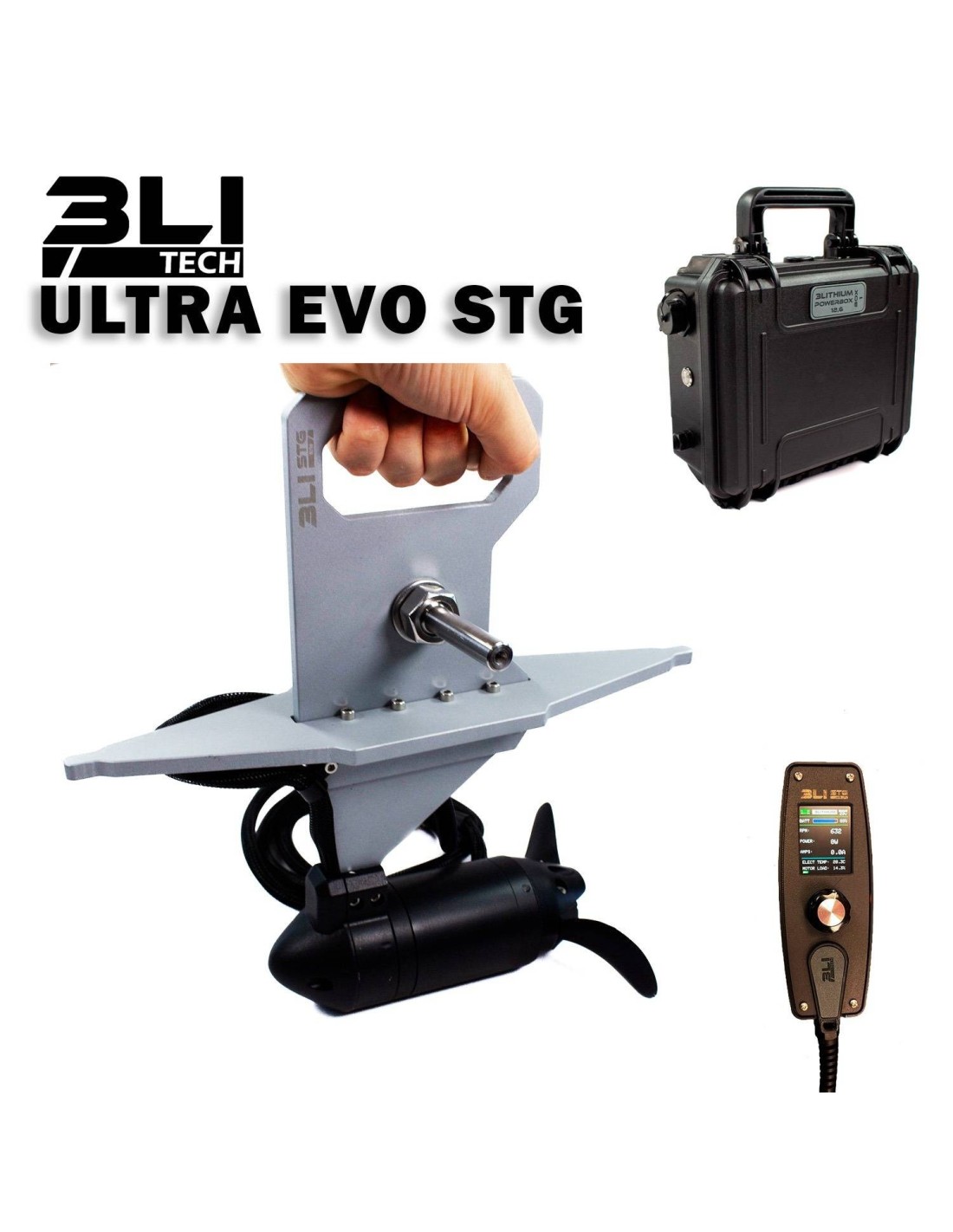

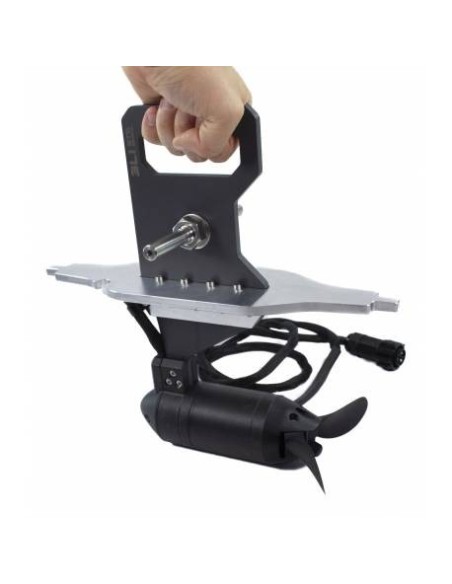

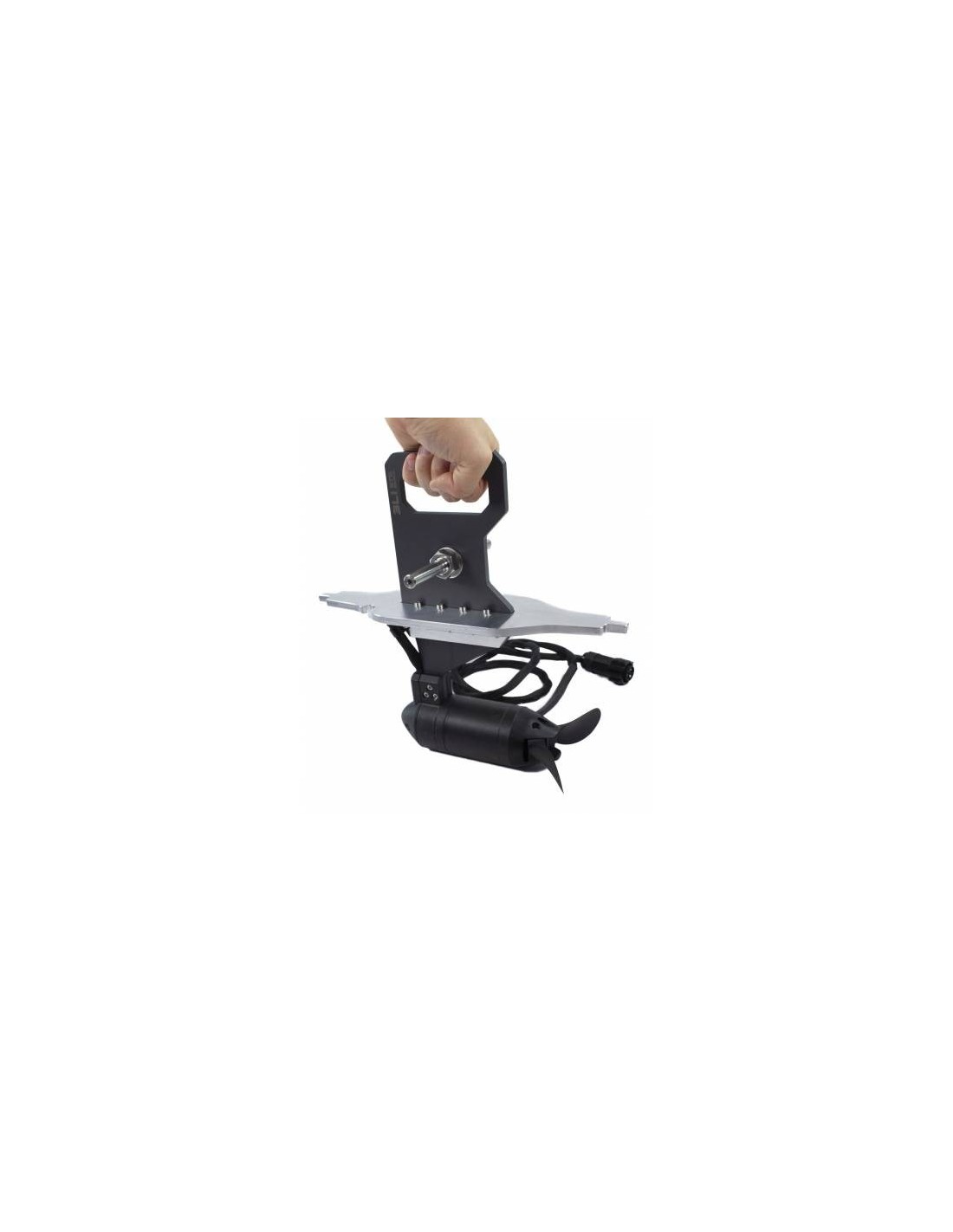

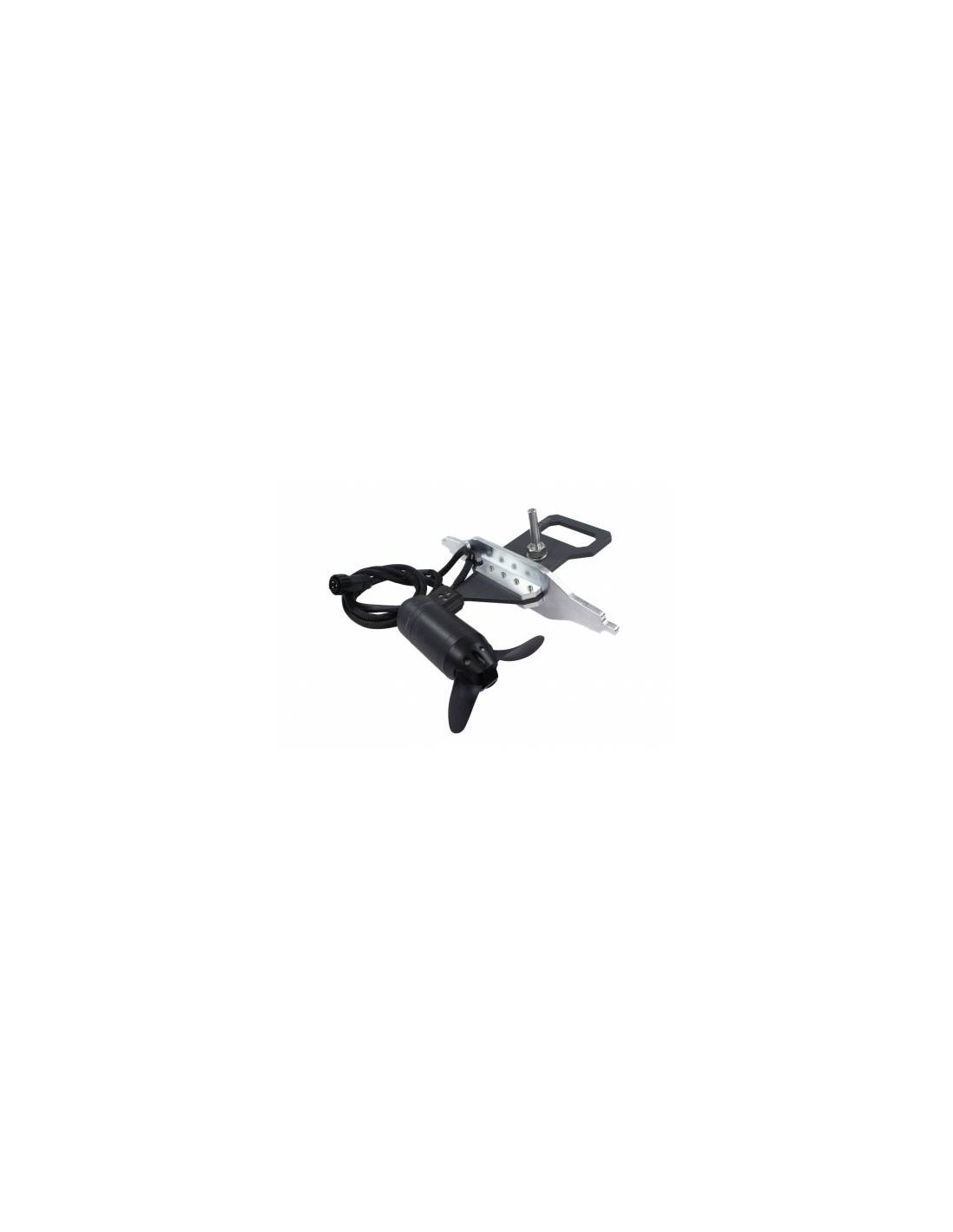

Ultra EVO STG 3CV 42V electric kayak motor for foot pedal
The Ultra EVO STG 3CV motor from 3Lithium Technology is a brushless electric motor designed for fishing kayaks in demanding conditions. With 3CV of power at 42V and 1,300 Wh of available energy, it is built to work in wind, current or under maximum load.
Technical specifications
- Ref.: STG-EVOMAX
- Power: 3CV (approximately 2,200W peak)
- Voltage: 42V
- Battery capacity: 1,300 Wh
- Motor type: brushless

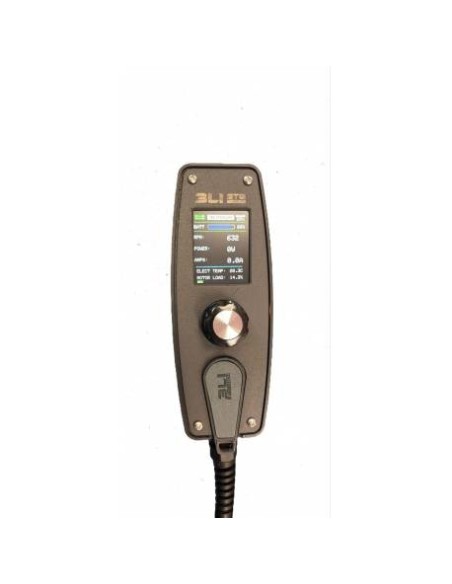

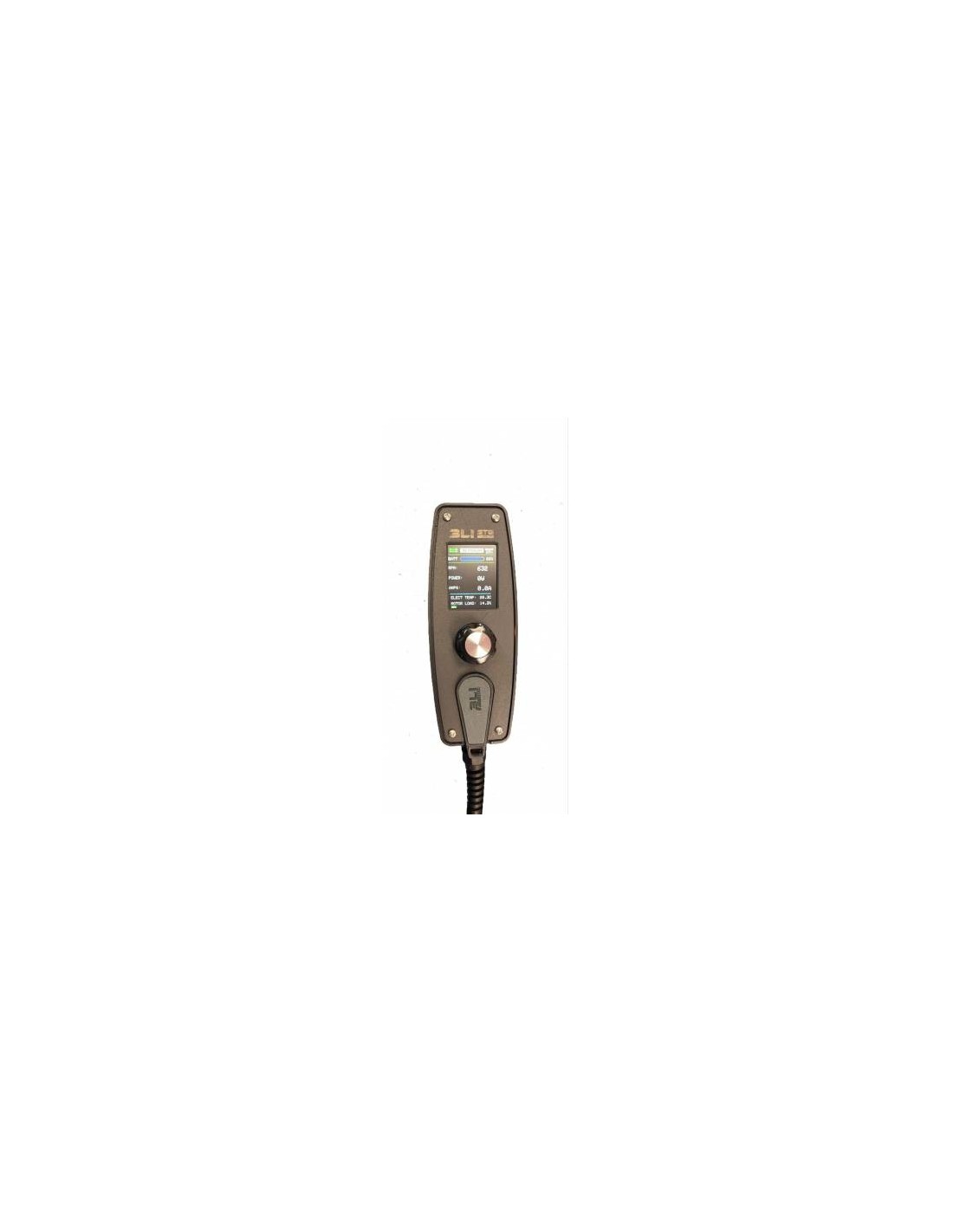

- Control unit: remote control with real-time digital display
- Safety system: HAA (man overboard), with automatic stop
- Battery: in an IPX67-certified case (dust and water)
- Connections: 100% waterproof

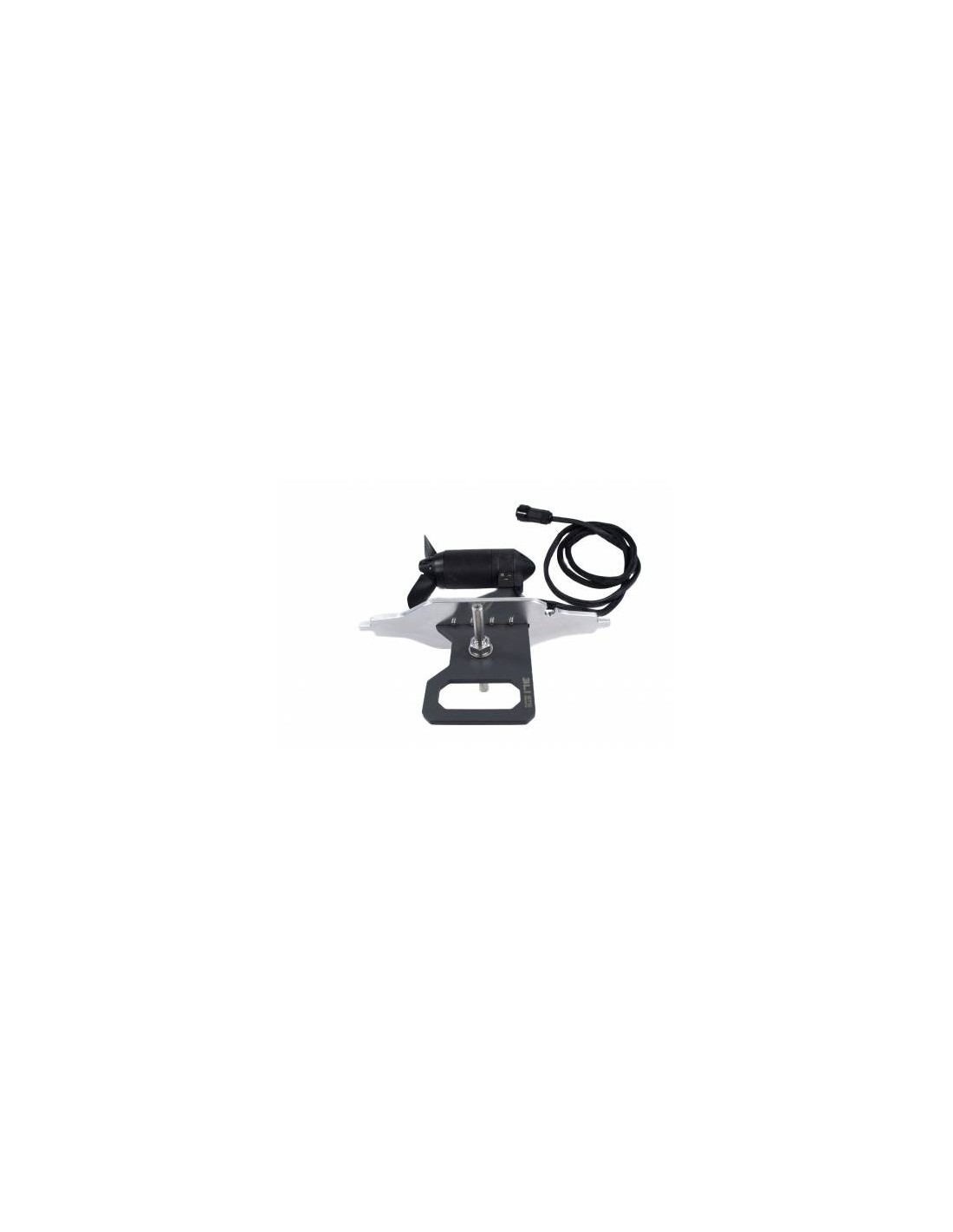

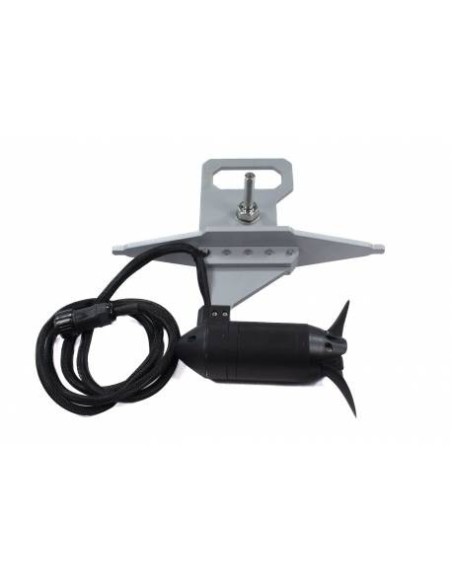

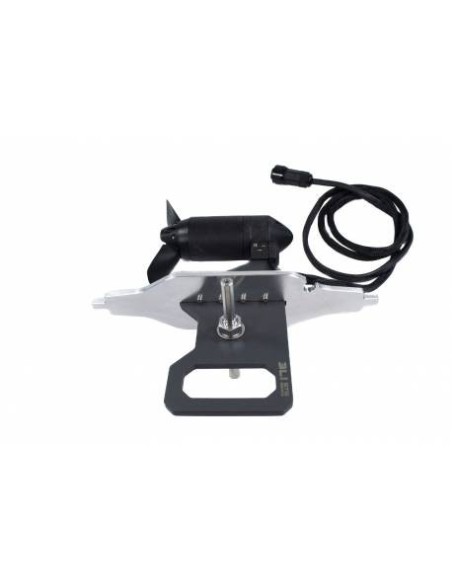

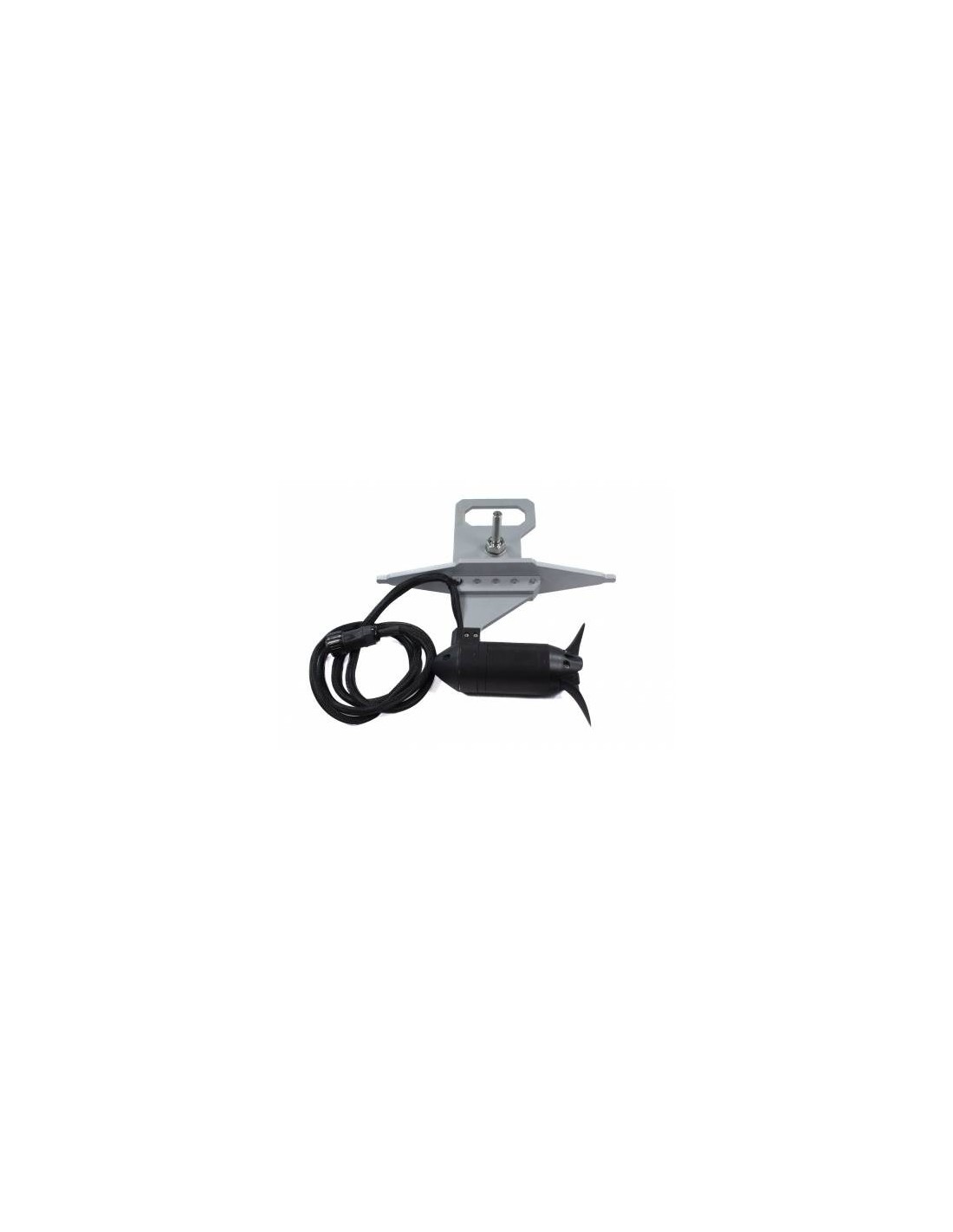

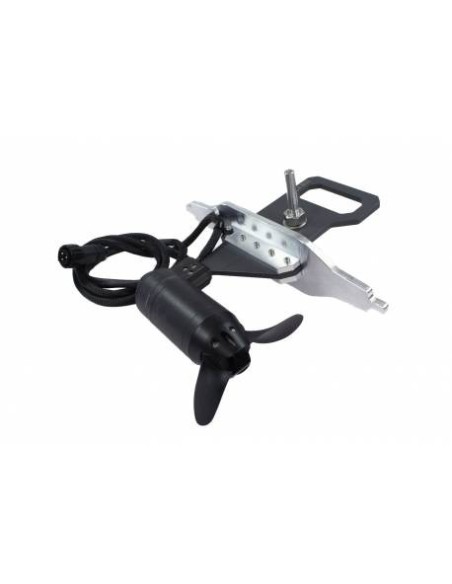

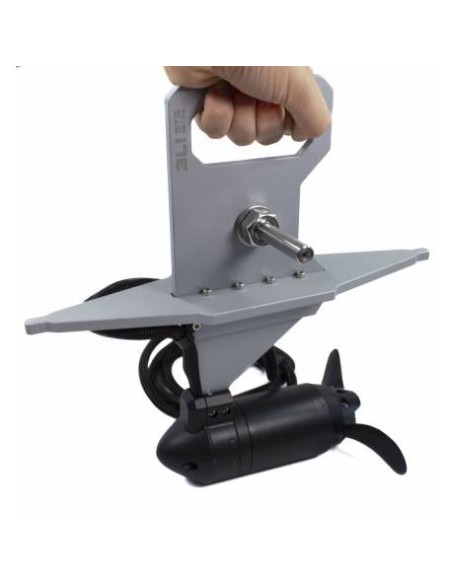

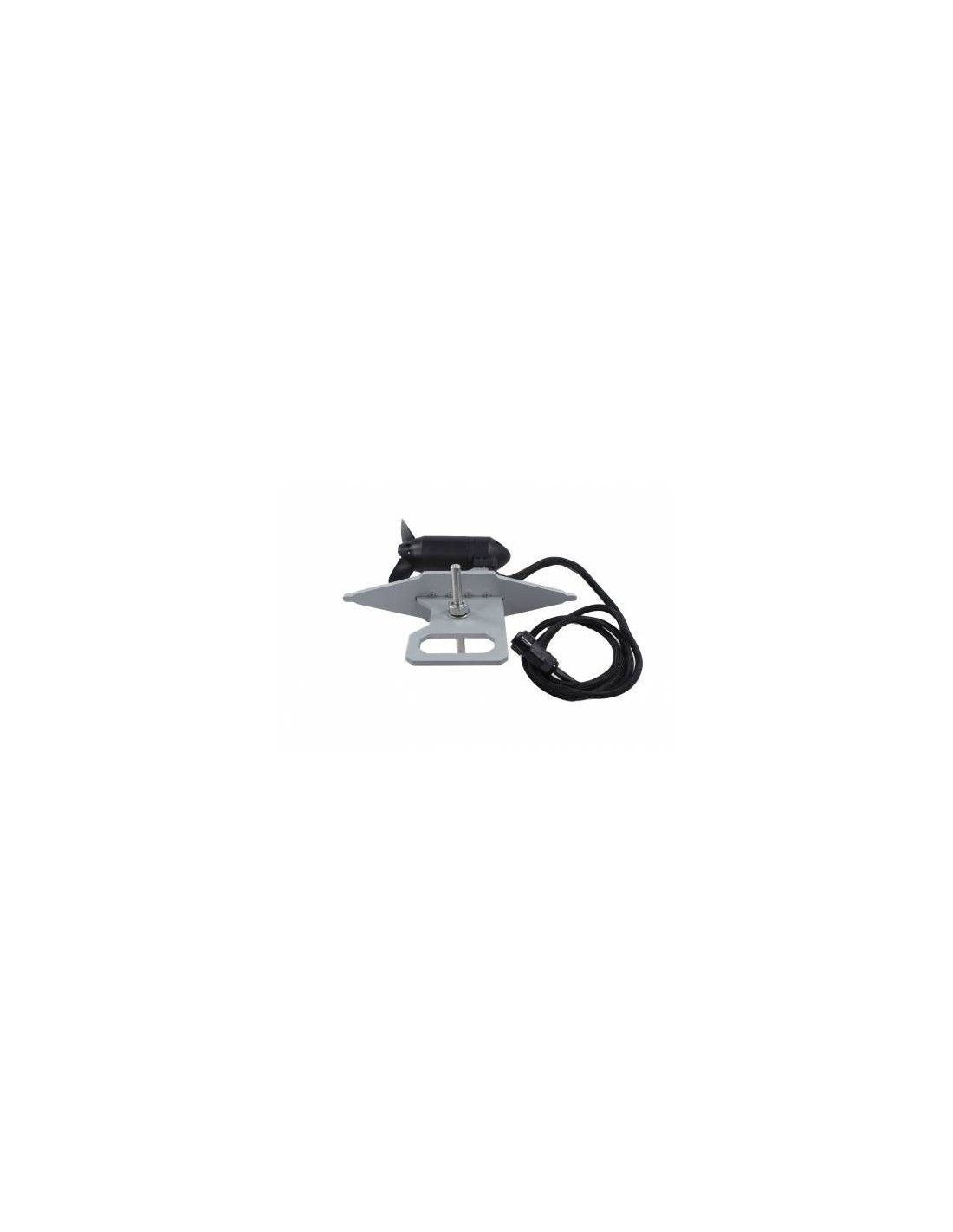

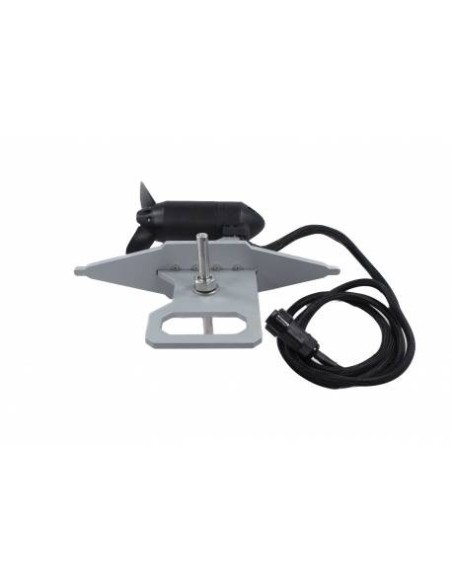

- Mount: corrosion-resistant marine aluminium
- Total system weight: 11.8 kg (battery 8.2 kg + motor and mount 3.3 kg + control unit 300 g)
- Battery case, internal dimensions: 300×225×132 mm

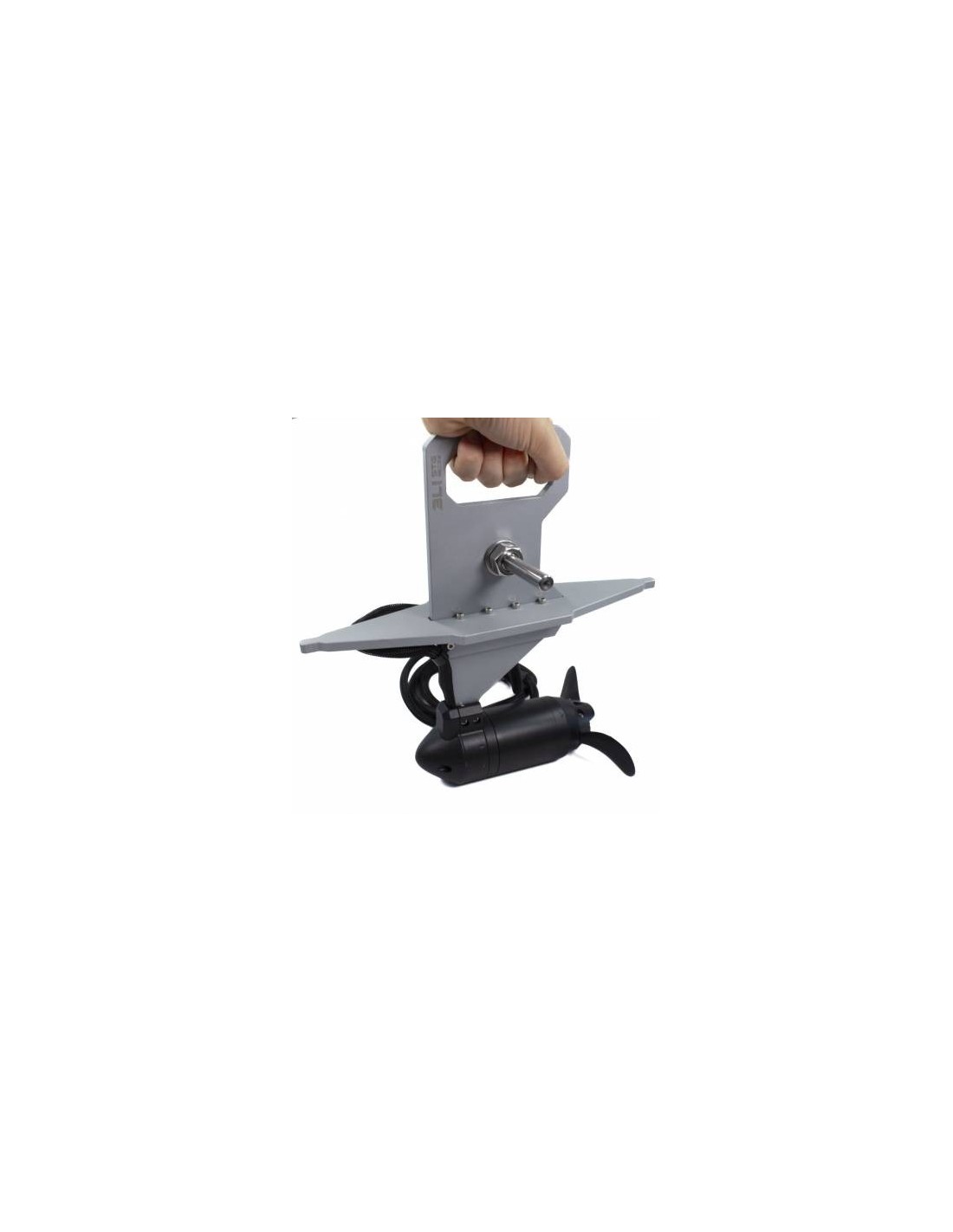

- Available finishes: polished aluminium / Black Edition (polyester resin powder coating)
Range and performance table
| Speed (knots) |
Speed (km/h) |
Consumption (W) |
Range (h) |
Distance (km) |
| 2 |
3.7 |
105 |
15.1 |
75 |
| 3 |
5.6 |
165 |
9.4 |
69 |
| 4 |
7.4 |
293 |
7.1 |
58 |
| 5 |
9.3 |
414 |
4.0 |
46 |
Values obtained under optimal conditions with a standard fishing kayak.
Note
For Galaxy kayaks, the right combination is a 150 mm shaft plus the Galaxy plate. For Hobie and all other kayaks, the plate is standard and you will need to measure the shaft length to choose the right option.
Who is this motor for?
For anglers who use fishing kayaks in demanding conditions: wind, river current, long crossings or heavy kayaks. Also for those who troll or fish offshore from a kayak.
Frequently asked questions
- Do I need a special plate for my kayak?
- If your kayak needs a custom mounting plate, there is a surcharge of €189.90. Write to us at info@peskayak.com to check compatibility with your model.
- Is the HAA system mandatory?
- The HAA (man overboard) system comes built in as standard and is strongly recommended for safe boating. It stops the motor automatically if the angler falls into the water and loses the safety key.
- What is the difference between the 42V and the 24V model?
- The 42V model (STG-EVOMAX) offers more peak power and better behaviour in adverse conditions. The 24V model (STG-ULTRA) is optimised for more standard use. Both are brushless motors.
