UltraPro 1HP 16.8V 1100W Long Range Electric Kayak Motor with TR1680B Battery

UltraPro 1HP 16.8V 1100W Long Range Electric Kayak Motor — TR1680B Battery, Extended Range

The UltraPro 1HP Long Range Motor by 3Lithium Technology is the extended-range version of the UltraPro range: the same 1HP motor at 16.8V with the new, larger TR1680B 1,100W battery. The choice for anglers who want more kilometres per charge without changing motors, with all the performance of the original UltraPro system plus extended range on every outing.

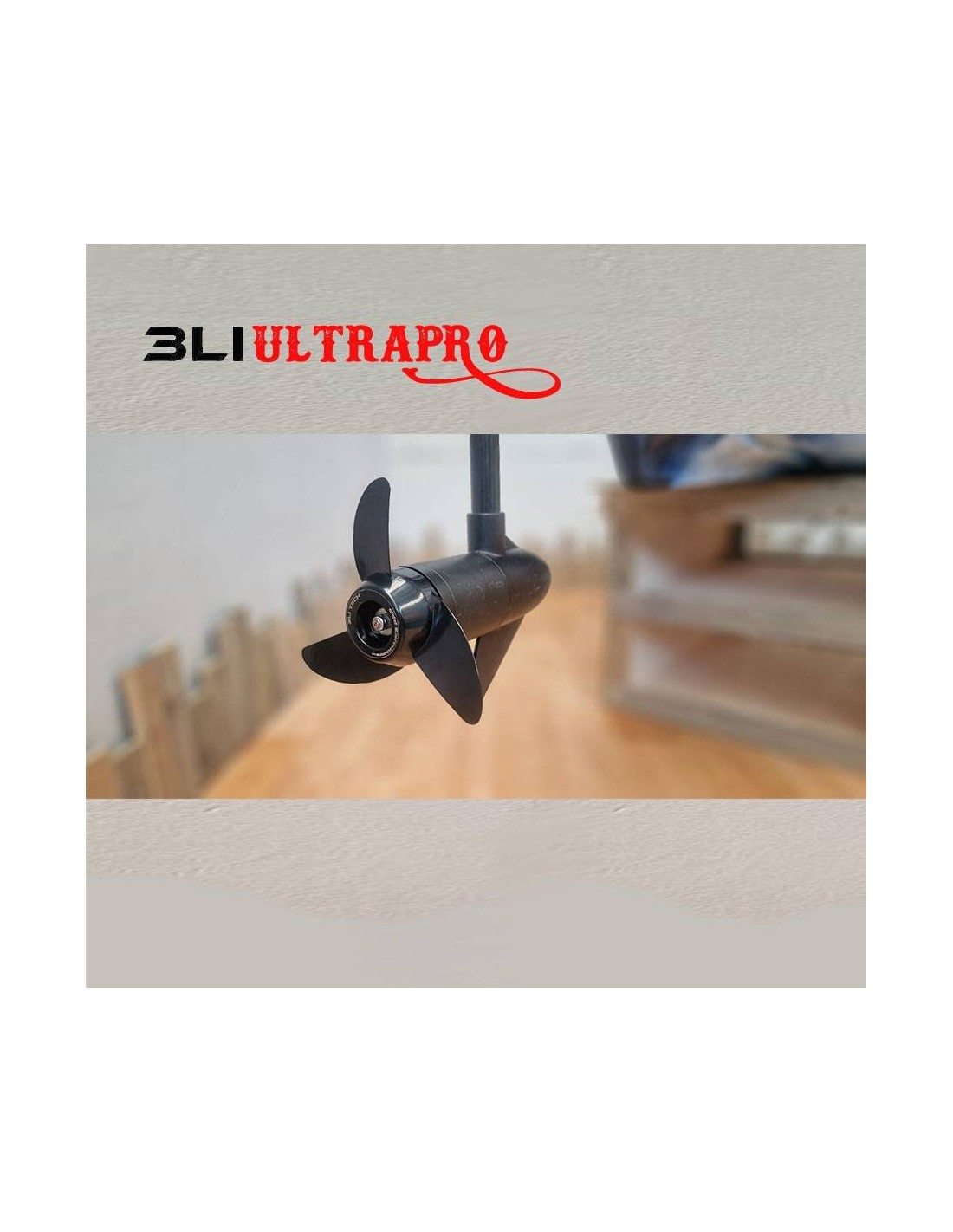

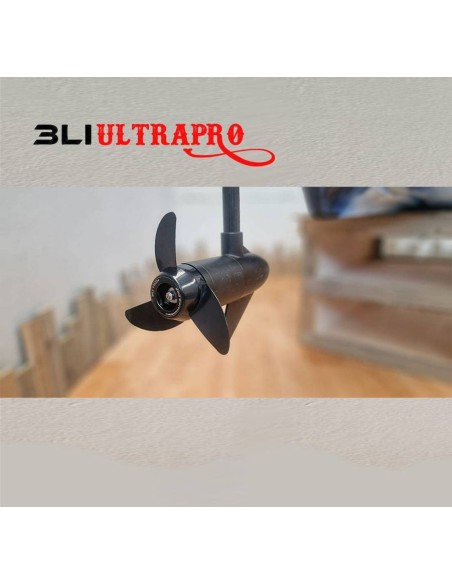

Motor Technical Specifications

• Power: 1,100W / 1HP
• Maximum voltage: 16.8V
• Nominal voltage: 14.8V
• Cut-off voltage: 12V
• Operation: Smooth and quiet
• Speeds: 0 to 100% forward / 0 to 50% reverse
• Shaft: Indestructible composite
• Mounts: UV- and flex-resistant
• Energy-saving system: Maximizer
• Suitable for: Kayaks up to 430 cm and 60 kg in weight
• Safety system: MOB (Man Overboard) — IPX58
• Connection kit: Included as standard
• Charger: Included
• Warranty: 3 years

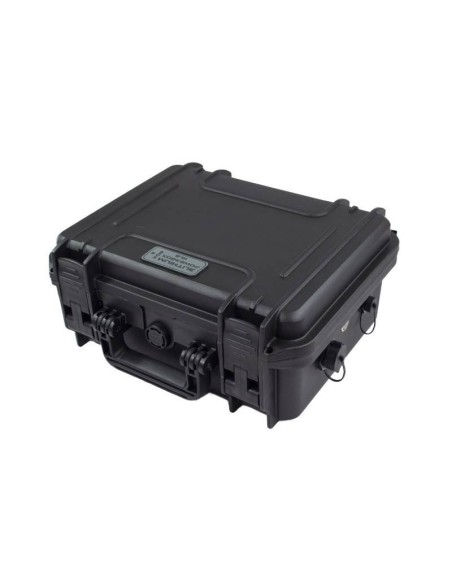

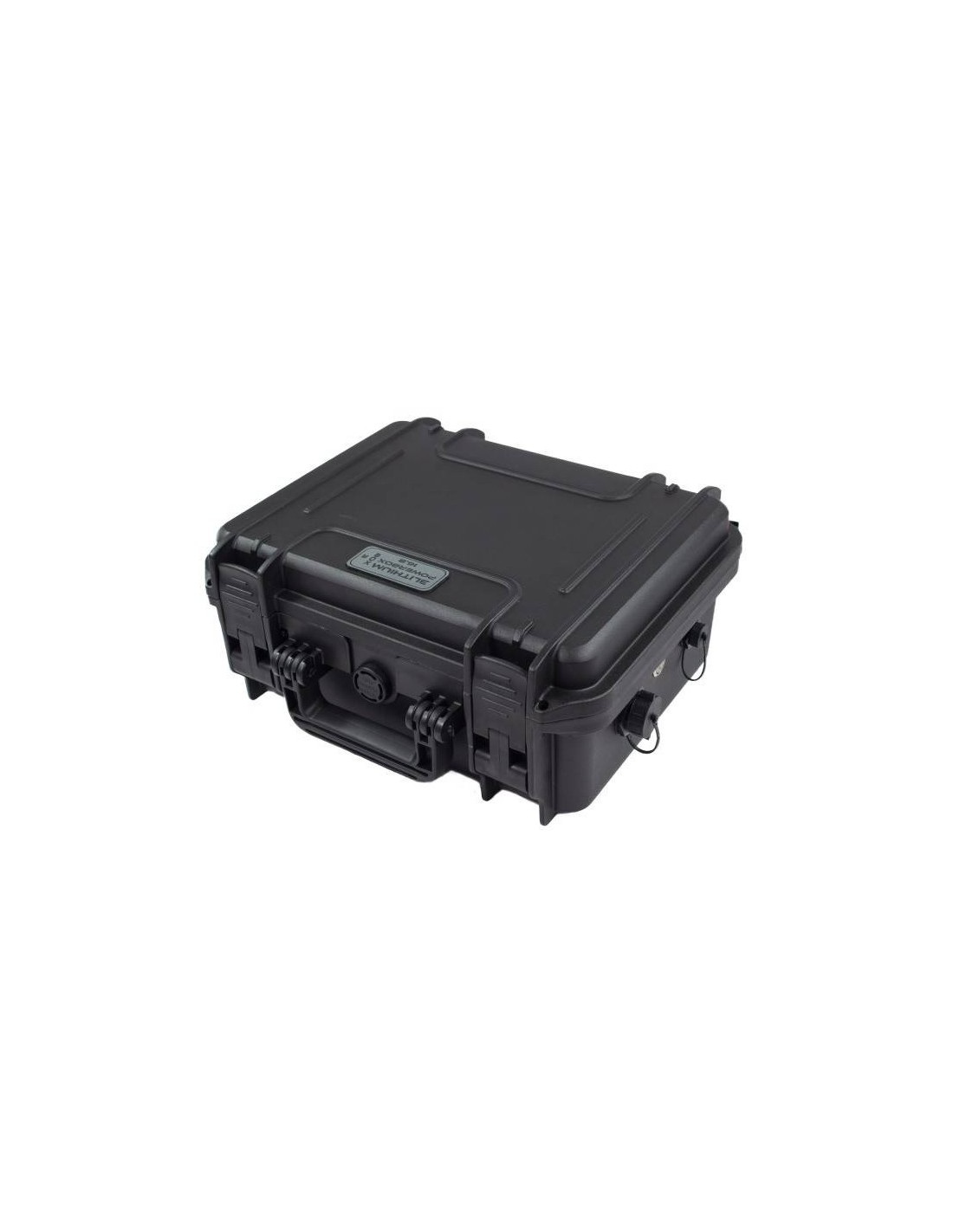

TR1680B Battery — New Higher-Capacity Version

• Capacity: 1,100W (greater than the TR1650)
• Amperage: 49A
• Nominal voltage: 14.8V
• Maximum voltage: 16.8V
• Cut-off voltage: 12V
• Maximum discharge amperage: 60A
• Maximum charge: 14A
• Water resistance: IPX58
• External case dimensions: 414 × 345 × 174 mm
• Battery weight: 6.2 kg
• Motor weight: 3.6 kg
• Mount weight: 1.4 kg
• Total system weight: 11.2 kg

Range and Performance Table

Values obtained under optimal conditions. The TR1680B version delivers greater distance at slow and medium speeds compared to the TR1650, thanks to its higher energy capacity.

Long Range vs Standard Version — Which One to Choose?

The Long Range version is the choice for long outings, large reservoirs, competition, or when the angler wants to go further without worrying about battery level. The extra kilogram of the system is more than compensated by the extra range.

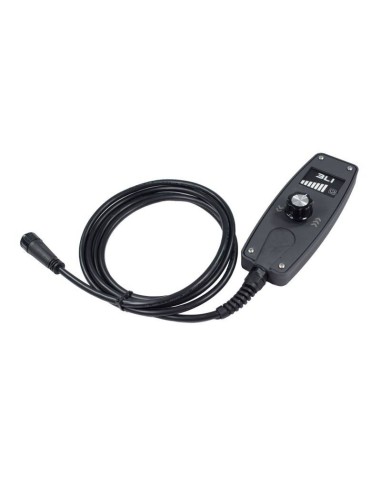

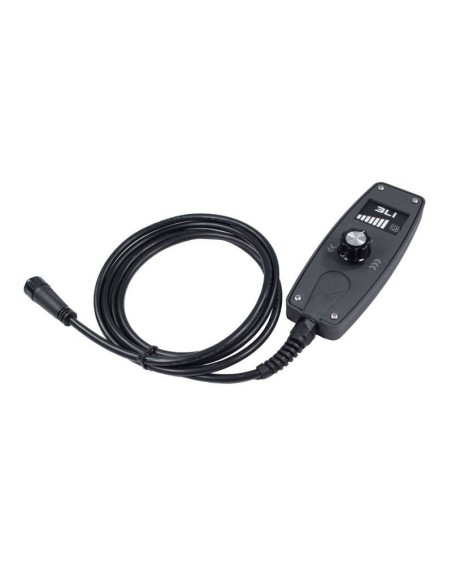

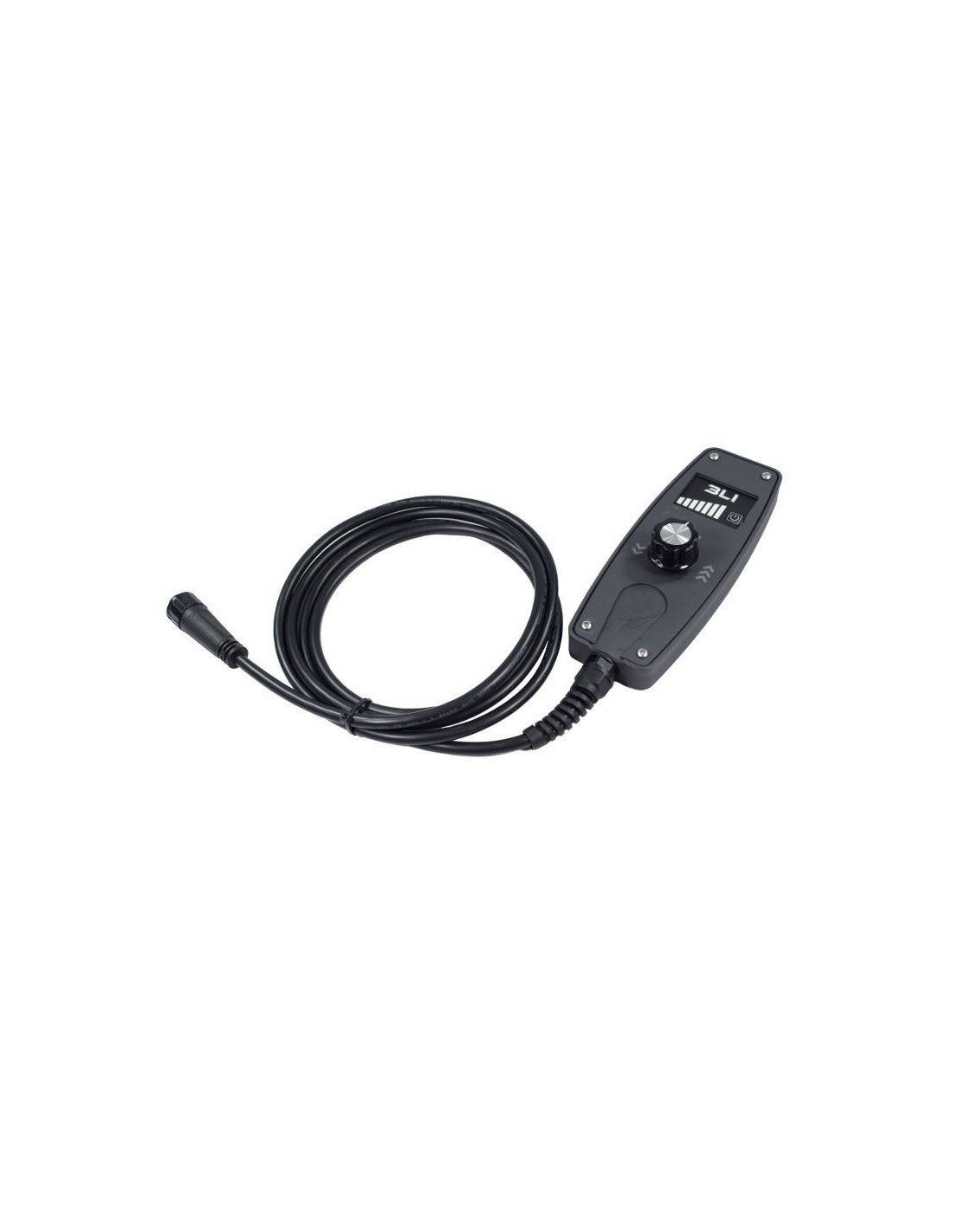

Wireless Remote Control — Full Control

• STOP button: Immediate stop at any speed and direction.
• + button: Progressive increase in forward power, 0 to 100%.
• – button: Progressive increase in reverse, 0 to 50% (limited for safety).

Note: The remotes are not submersible.

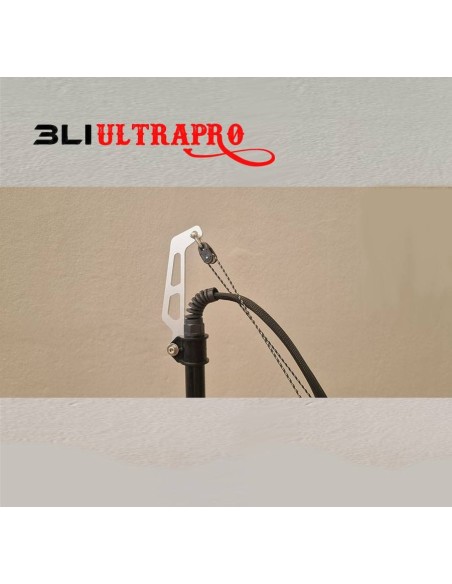

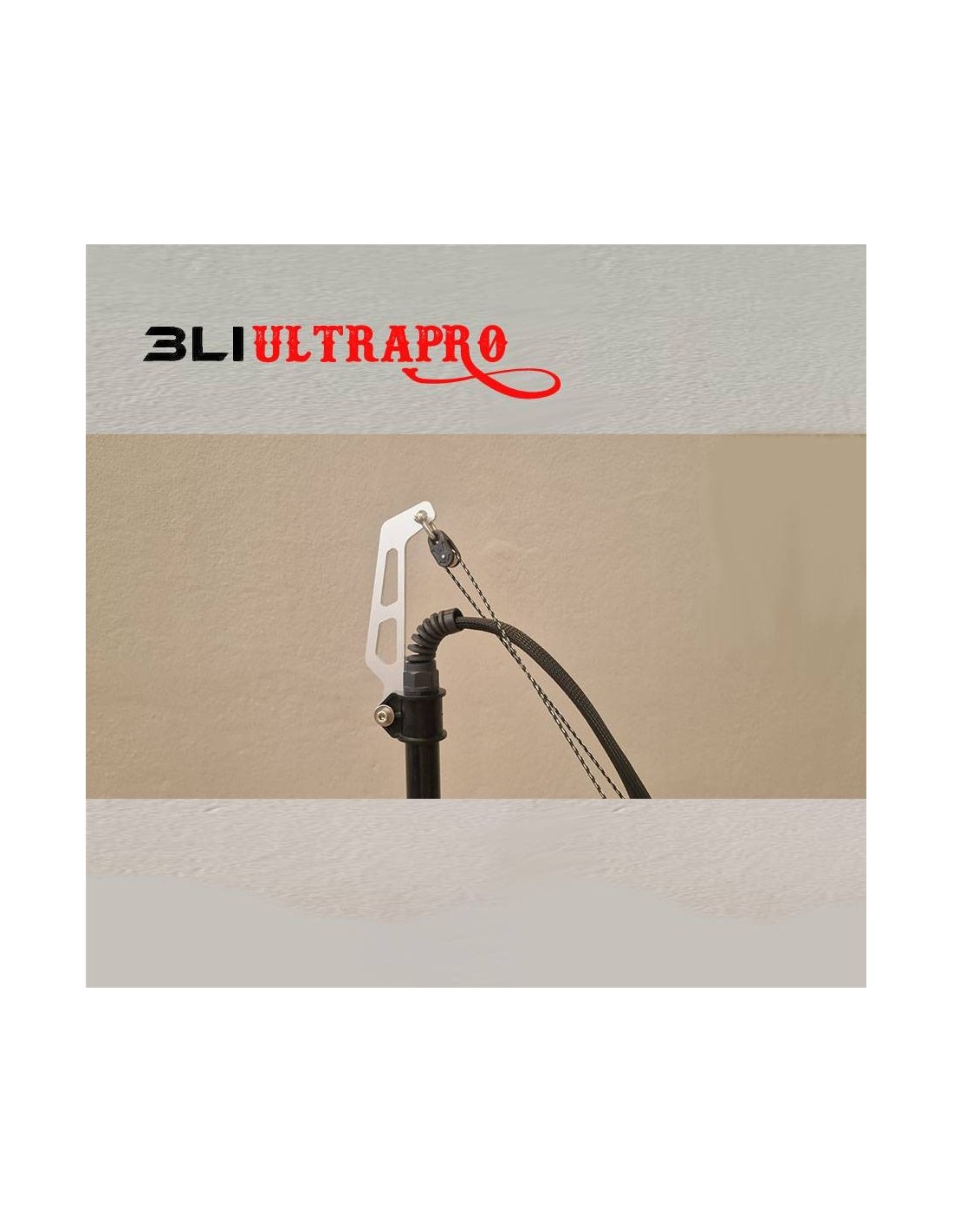

Universal Stern Mount

Compatible with the leading fishing kayaks on the market: Alborán FX3, Wildcat FX, Supernova FX, Outback, Compass and models with similar geometry. For kayaks with special geometry, check our range of custom mounts.

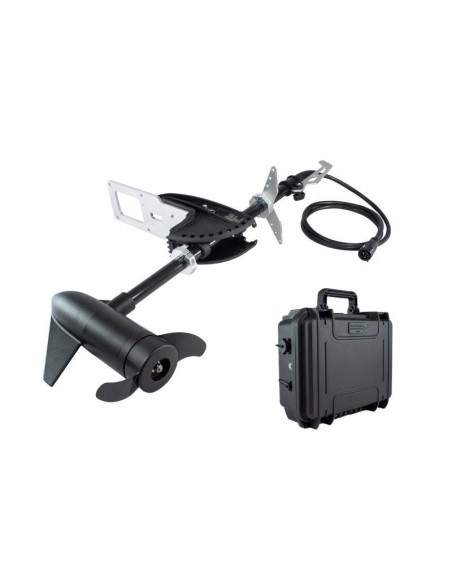

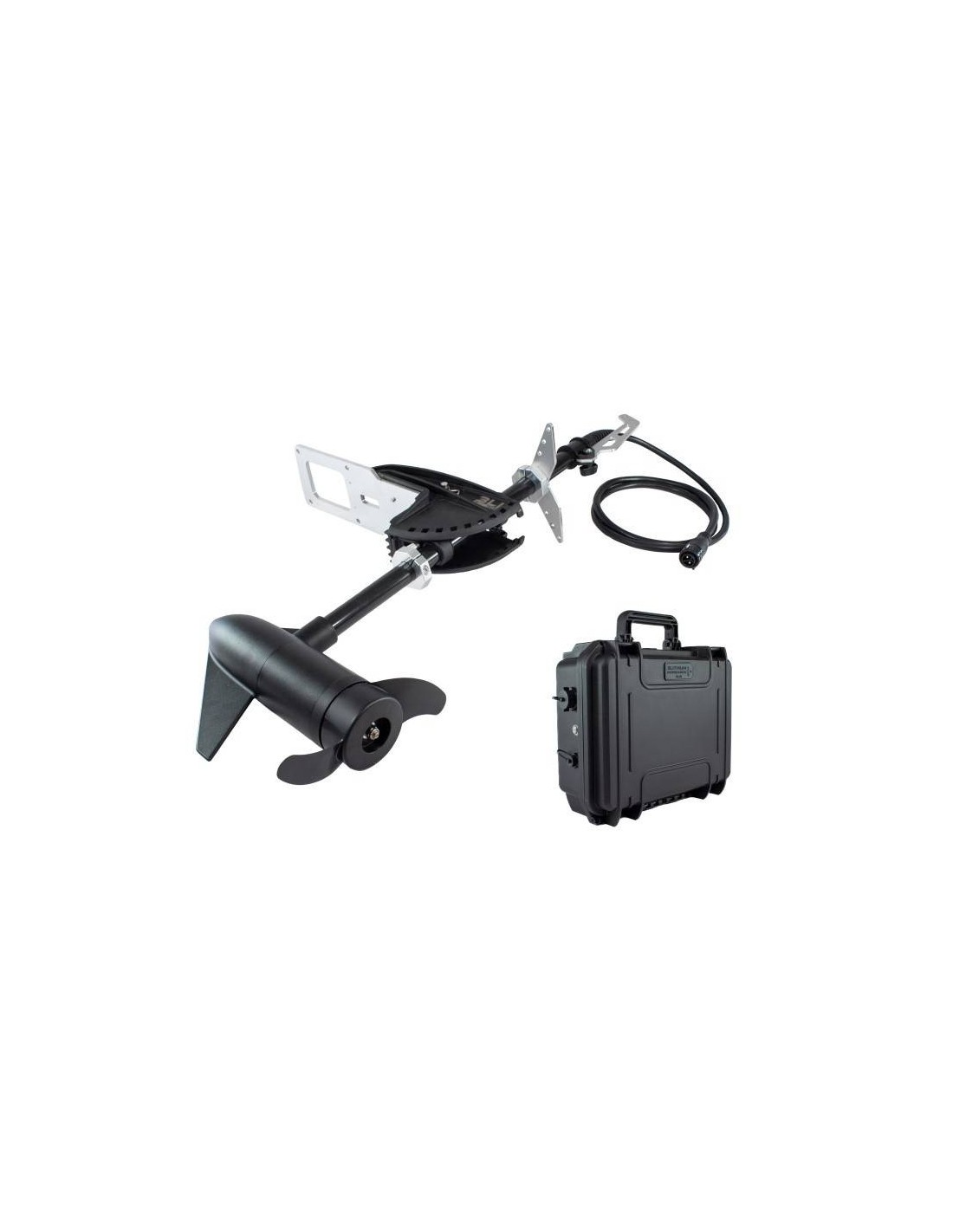

Pack Contents

• UltraPro 1HP Motor 1,100W 16.8V
• TR1680B Battery in IPX58 case
• Wireless remote control
• Universal Motor Mount stern bracket
• MOB (Man Overboard) safety system
• Safety key

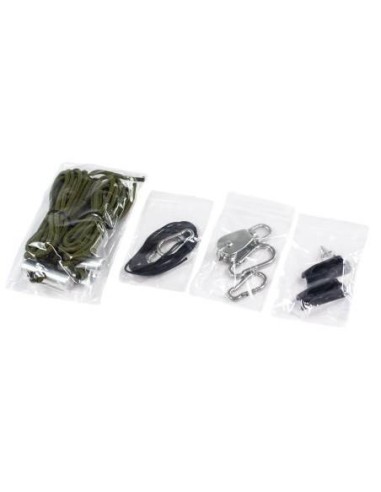

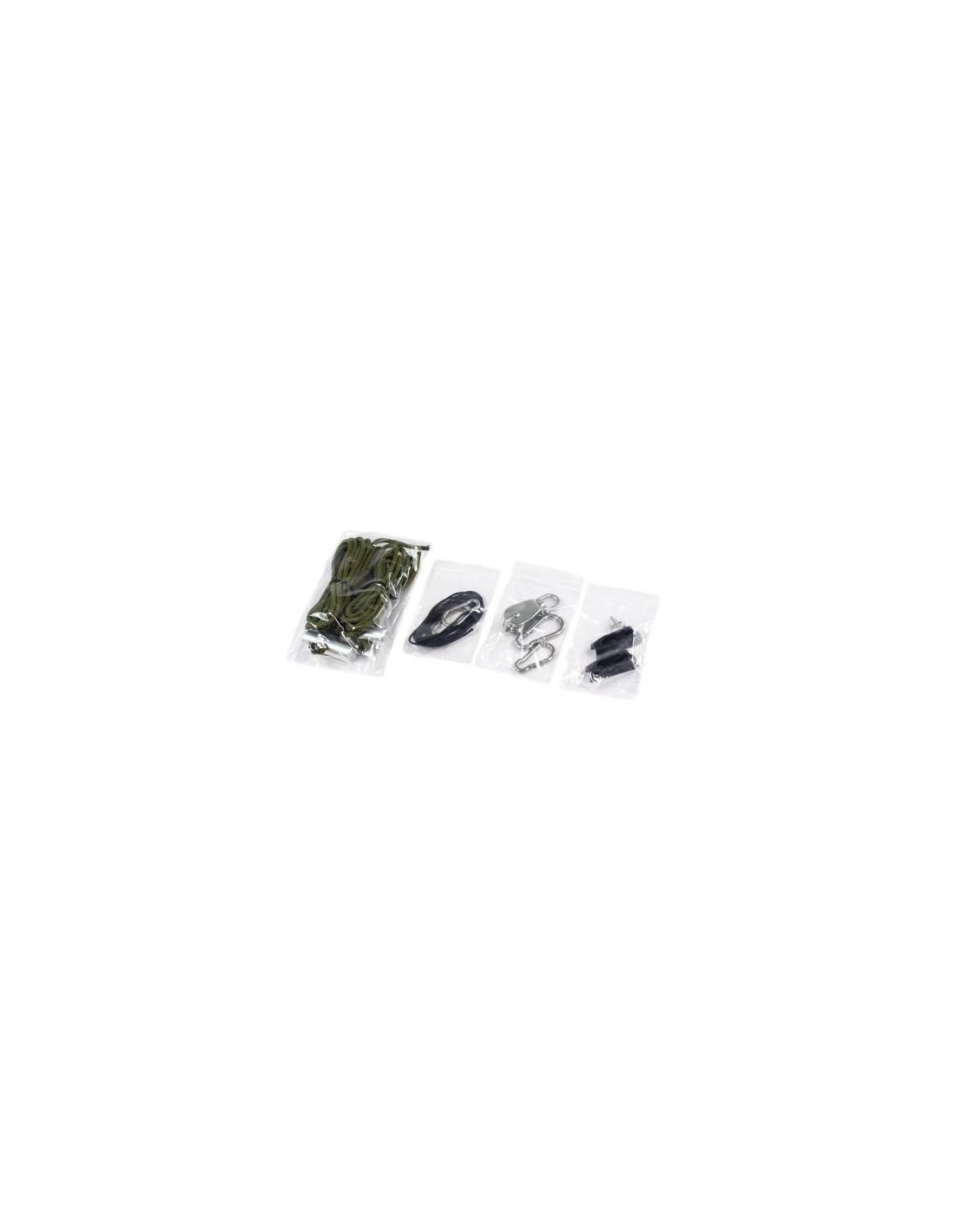

• Standard connection kit
• Charger included

Frequently Asked Questions

What's the difference between the UltraPro 1HP TR1650 and the TR1680B?

The motor is exactly the same in both models. The difference is the battery: the TR1680B has greater capacity (1,100W vs 725.2Wh), which translates into more kilometres per charge, especially at medium and low speeds. The TR1680B is the Long Range version for those who need more range without changing motors.

Can I use the TR1680B battery with the TR1650 motor I already have?

Yes, batteries from the 16.8V HV range are interchangeable between compatible UltraPro motors. Check with our technical service at info@3lithium.es to confirm compatibility with your specific model.

Does the extra 1kg of weight affect the kayak's performance?

The extra kilogram of the TR1680B battery compared to the TR1650 is practically unnoticeable on an equipped fishing kayak. The gain in range far outweighs the minimal weight increase.

What type of fishing do you recommend the Long Range version for?

For fishing on large reservoirs where several kilometres are covered between spots, for fishing guides working long days, for kayak fishing competition, and for anyone who wants to go out and back without worrying about battery level.

3Lithium Technology — Specialists in electric propulsion for kayak and float tube. Córdoba, Spain. 24h shipping across Europe. RII-AEE: 15777 · RII-PYA: 7049.
